Reliable Kws -300 Four Electrode Conductivity Sensor / Water Quality Monitor Equipment
1. Applications
Kacise Sensor launched a new generation of four-electrode conductivity sensor, using international leading four-electrode technology, RS485 digital interface, support MODBUS protocol, environmentally friendly design. Compared to traditional two-electrode conductivity sensors, it offers higher accuracy, wider measurement range and excellent stability. The four-electrode conductivity sensor also has unique advantages in terms of number: one is to completely solve the polarization problem in the high conductivity test; the other is to completely solve the polarization problem in the high conductivity test; the other is to solve the problem of inaccurate reading caused by electrode contamination.
2. Feature
1uS / cm~200 mS / cm, accuracy <1%
RS485 output, support Modbus, open communication protocol
0~50°C, protection class IP68, maximum pressure 6bar
Will not be polarized and can be used continuously online
Wide range of applications and a wider range of applications
Very resistant to pollution and strong anti-interference
Very stable measurement and higher precision
Robust construction and long service life
3.Technical Specifications
| Measuring range | 1uS/cm~200 mS/cm |
| Response time | <10 sec |
| Protection level | IP68 |
| accuracy | <1% |
| Electrode material | nickel |
| product material | peak |
| temperature range | 0 ~ 50℃ |
| Output | Support RS-485, MODBUS protocol |
| Power supply | DC 5~12V, current <50mA |
| Temperature sensor | NTC |
| Shell diameter | 22mm |
| Shell length | 146.5 mm |
| Probe cable length | 10 meters, customers can choose 5 meters, 15 meters and 30 meters cable |
| Optical window | optical fiber |

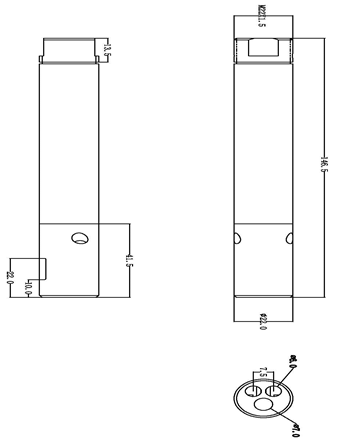

4. Sensor structure
