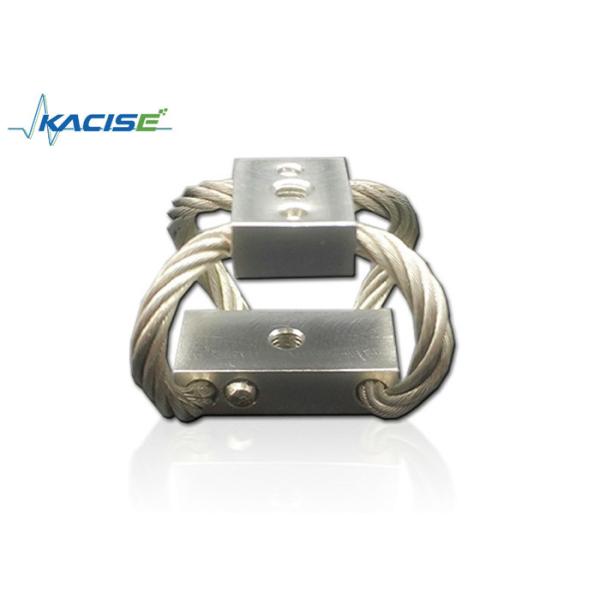

Handmade Camera Vibration Isolator / Wire Rope Vibration Dampers High Performance

Name: Handmade Camera Vibration Isolator Wire Rope Vibration Dampers High Performance
Brand: kacise
Price: 1 USD

Wholesale Handmade Camera Vibration Isolator / Wire Rope Vibration Dampers High Performance from china suppliers

Brand Name : kacise

Model Number : GR SERIERS

Certification : iso9001

Place of Origin : china

MOQ : 1 Piece/Pieces

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000 Piece/Pieces per Month

Delivery Time : 10 working days

Packaging Details : carton or customers requests available

model : GR SERIERS

certification : so9001

name : Handmade camera vibration isolator / wire rope vibration dampers

application : Widely be used on the small devices

Contact Now

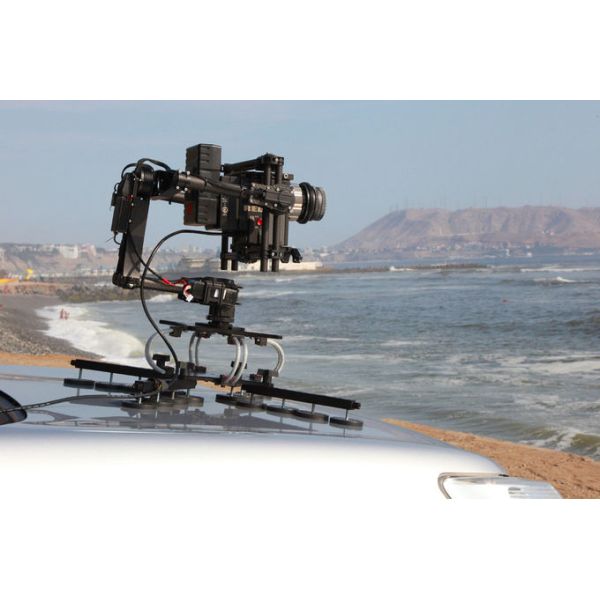

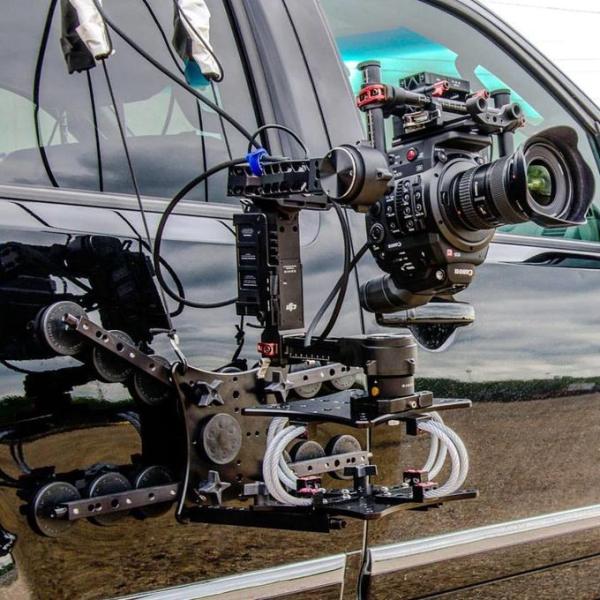

GR Seriers Handmade Camera Gimbal Stabilizer Helicopter Drone Aerial Photography Camera Vibration Isolator

1. Product Description

GX Compact Wire Rope Isolators feature an easy, single-point installation, which allows them to be installed in virtually any application. Their small size also permits the isolation of individual system components, makingthem ideal for use in sensitive equipment and electronics. Just as with our standard GX Wire Rope Isolators, GX Compact Wire Rope Isolators feature a patented, all-metal design and components that ensure maximum reliability, regardless of temperature or substrate requirement, and that can help meet MILSPECS similar to those of our Wire Rope Isolator series. Please refer to our “Compact Wire Rope Isolator Sizing Information”.

Handmade Camera Vibration Isolator / Wire Rope Vibration Dampers High Performance

2.Parameters

Dimension Parameter Table

Model	Height ±1.5(mm)	Width (mm)	Weight (kg)	MountingOptions	Thru Hole(mm)	Thread (mm)	C’sink
GR6-100	47	54	0.91	A,B,C,D,E,S	φ7	M6x1.0	90
GR6-200	55	59	0.99
GR6-300	64	64	1.04
GR6-400	79	73	1.17

Table 1 GR4 Series Technical Parameters

Model	Max Static Load(N)	Max Deflection(mm)	Kv (Vibration)(KN/m)	Ka(Shock)(KN/m)
GR6-100	142	22.1	32	16
GR6-200	93	29.5	20	9.6
GR6-300	67	37.6	15	5.3
GR6-400	36	51.6	7.9	2.6

Table 2 GR4 45°Compression/Roll Load

Model	Max Static Load(N)	Max Deflection(mm)	Kv (Vibration)(KN/m)	Ka(Shock)(KN/m)
GR6-100	40	22.9	16	7.9
GR6-200	33	30.5	9.6	5.3
GR6-300	22	38.1	7.9	2.8
GR6-400	13	53.3	3.5	1.2

Table 3 GR4 Shear/Roll Load

Model	Max Static Load(N)	Max Deflection(mm)	Kv (Vibration)(KN/m)	Ka(Shock)(KN/m)
GR6-100	40	20.6	7.9	7.9
GR6-200	31	27.4	4.4	4.4
GR6-300	22	34.3	2.6	2.6
GR6-400	16	48	1.6	1.6

3. Feature

● Be designed as the same production of France
● Feature with less volume and weight
● With the characters of three dimensional variable stiffness and friction
● Widely be used on the small devices

4. Application Field

Applications	Typical Equipment	Protection From	Operational Advantages
Shipboard	Electronics, Computers, Machinery	Explosive blast, Inherent vibration, Storms	Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection
Rough Terrain Vehicles	Instrumentation, Generators, Electronics	Rough terrain, Poor road conditions, Collision	Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation
Aircraft	Electronics, Computers	High-G maneuvering, Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop, Loading/Unloading	Long life, Maintenance-free, Exposure to moisture, Repeated use
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free, Corrosive environments
Ordnance Equipment	Missile launchers, Tank artillery, Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers, Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments

Handmade Camera Vibration Isolator / Wire Rope Vibration Dampers High Performance
